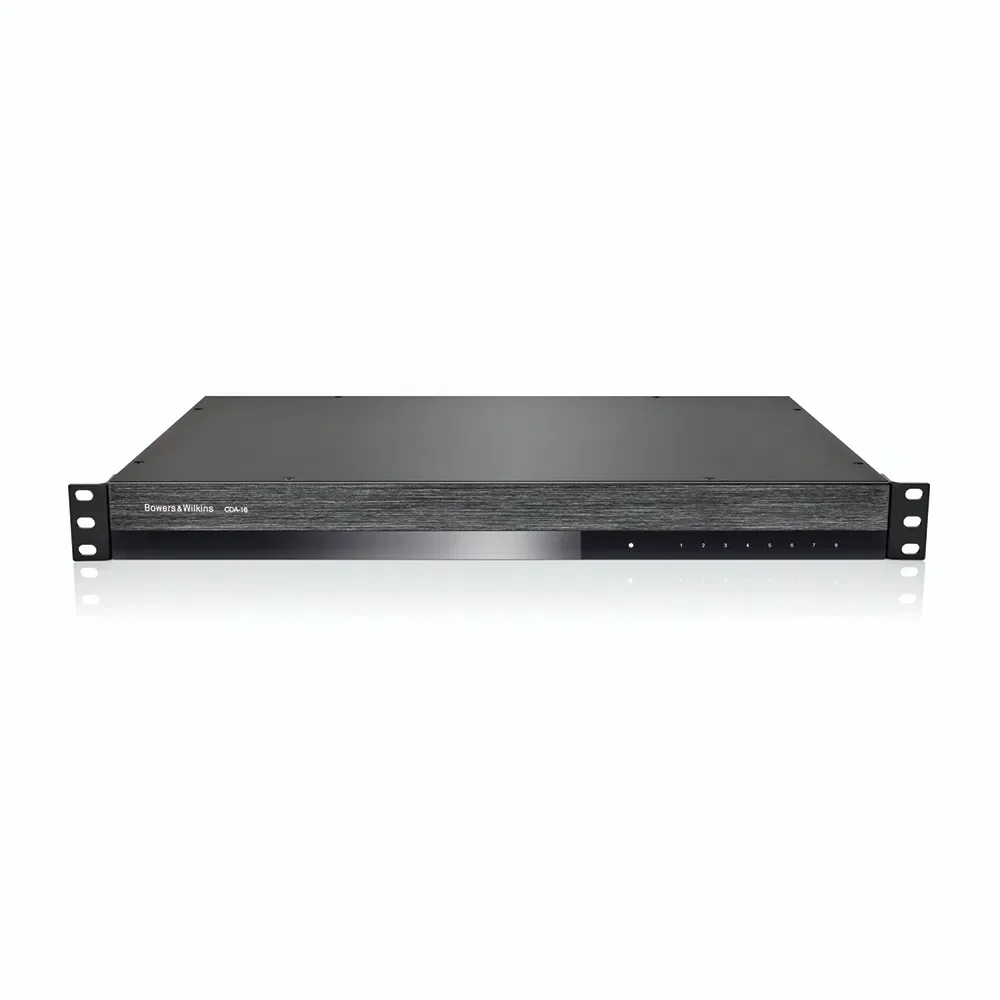

16 channels of power
Compact 1U design
Supports bridging of its Class D stereo channels into mono outputs
Audio SpecificationsLoad impedance range:>3Ω per channel (>6Ω in bridge mode)Output Power per channel, non-clipped:>50W into 8Ω
>100W into 4ΩOutput Power bridge mode, non-clipped:>200W into 8ΩOutput Power total, all channels:>400W short term
>200W continuous averageDC offset voltage:<50mVFrequency Response (-3dB):<10Hz to >50kHz, any load impedanceFrequency response accuracy 20Hz-20kHz:±0.5dBSignal to Noise ratio (Ref. 50W/8Ω):>100dB A-WeightedTHD+N (1kHz, 12.5W, 4Ω):typically 0.05%Voltage Gain:34.9dB to - infinity, adjustableInput impedance:15KΩMaximum input voltage:6.8V peak (4.8V rms sine wave)Signal sense threshold:2.5mV (independent of Gain setting)Wake-up time:<0.2s (If other zones active)
<2s (From all zones inactive)Turn-off time:15 minutes from last signal detected12V trigger input threshold:typically 3V (recommended input is 5-15V)Controls & IndicatorsFront panel:1 x Power LED (unit active – White, Fault – Red)
8 x Zone status LEDs (Signal present – White, Fault – Red)Signal sense threshold:2.5mV (independent of Gain setting)Rear panel:8 x 2-position DIP switches (link to global input)
1 x 3-position switch (power mode: on, auto detect, 12V trigger)
8 x input gain control with Clip indicator LEDsConnectorsInput:8 x RCA (pair) Phono socket, line in (global in shared with Zone 8)Output:1 x RCA (pair) Phono socket (global out)
8 x 5.08mm Pitch 4-way Phoenix Combicon style12V trigger control:1 x 3.5 mm jack - 12V trigger IN
1 x 3.5 mm jack - 12V trigger OUT (Maximum 100mA pass-through)Turn-off time:15 minutes from last signal detected12V trigger input threshold:typically 3V (recommended input is 5-15V)PowerPower consumption:<0.5W All zones inactive
<45W All zones idling
300W maximum average
1,000W peakAC supply:100-240V 50/60HzAC inlet:IEC C14, switchedThermalThermal dissipation:1.7 BTU/hr (standby)
150 BTU/hr (Idle)
400 BTU/hr (max)DimensionsHeight:44.5 mm (1.8in) 1U [55.5 mm (2.2in) plus feet]Width:437 mm (17.2in)Depth:310 mm (12.2in)Net weight:4.5kg (9.9lb)Finish:BlackManufacturer's Warranty*2 yearsFaulty From New*: (Within 14 Days Of Purchase):Return to AWE for assessment.
