Bowers & Wilkins CDA-2HD DSP Amplifier, 2 Channel 500 watts Black

£2,300.00

Bowers & Wilkins CDA-2HD DSP Amplifier, 2 Channel 500 watts, Black

(FP43613)

The CDA-2HD is a high-power distribution amplifier, designed to drive current and future Bowers & Wilkins Custom Installation loudspeakers. Embedded DSP allows optimisation of a wide range of products and dynamic EQ for Bowers & Wilkins subwoofers. It boasts two channels of 500 watts each, and its half-rack width 2U design delivers high-performance from minimum rack space.

Impressively smart

To ensure the CDA-2HD delivers in the modern custom installation system, it is equipped with Digital Signal Processing (DSP). This allows it to be used in wide variety of situations, provides control over IP and configuration, and dynamic EQ for Bowers & Wilkins subwoofers.

Compact powerhouse

CDA-2HD’s half-rack width 2U size means that it takes up the minimum of rack real estate. But with two channels of 500 watts of Class D amplification on board it can bring the power when required. Plus, as it’s bridgeable this can be configured to deliver 1,000 watts where needed.

Flexible

Whether you are looking to upgrade an in-situ installation or planning a new one, the CDA-2HD DSP amplifier is a great solution. It combines power with finesse, and works with a wide variety of Bowers & Wilkins products, both current and future.

Bowers & Wilkins CDA-2HD DSP Amplifier, 2 Channel 500 watts, Black

(FP43613)

The CDA-2HD is a high-power distribution amplifier, designed to drive current and future Bowers & Wilkins Custom Installation loudspeakers. Embedded DSP allows optimisation of a wide range of products and dynamic EQ for Bowers & Wilkins subwoofers. It boasts two channels of 500 watts each, and its half-rack width 2U design delivers high-performance from minimum rack space.

Impressively smart

To ensure the CDA-2HD delivers in the modern custom installation system, it is equipped with Digital Signal Processing (DSP). This allows it to be used in wide variety of situations, provides control over IP and configuration, and dynamic EQ for Bowers & Wilkins subwoofers.

Compact powerhouse

CDA-2HD’s half-rack width 2U size means that it takes up the minimum of rack real estate. But with two channels of 500 watts of Class D amplification on board it can bring the power when required. Plus, as it’s bridgeable this can be configured to deliver 1,000 watts where needed.

Flexible

Whether you are looking to upgrade an in-situ installation or planning a new one, the CDA-2HD DSP amplifier is a great solution. It combines power with finesse, and works with a wide variety of Bowers & Wilkins products, both current and future.

Two channels of 500 watts

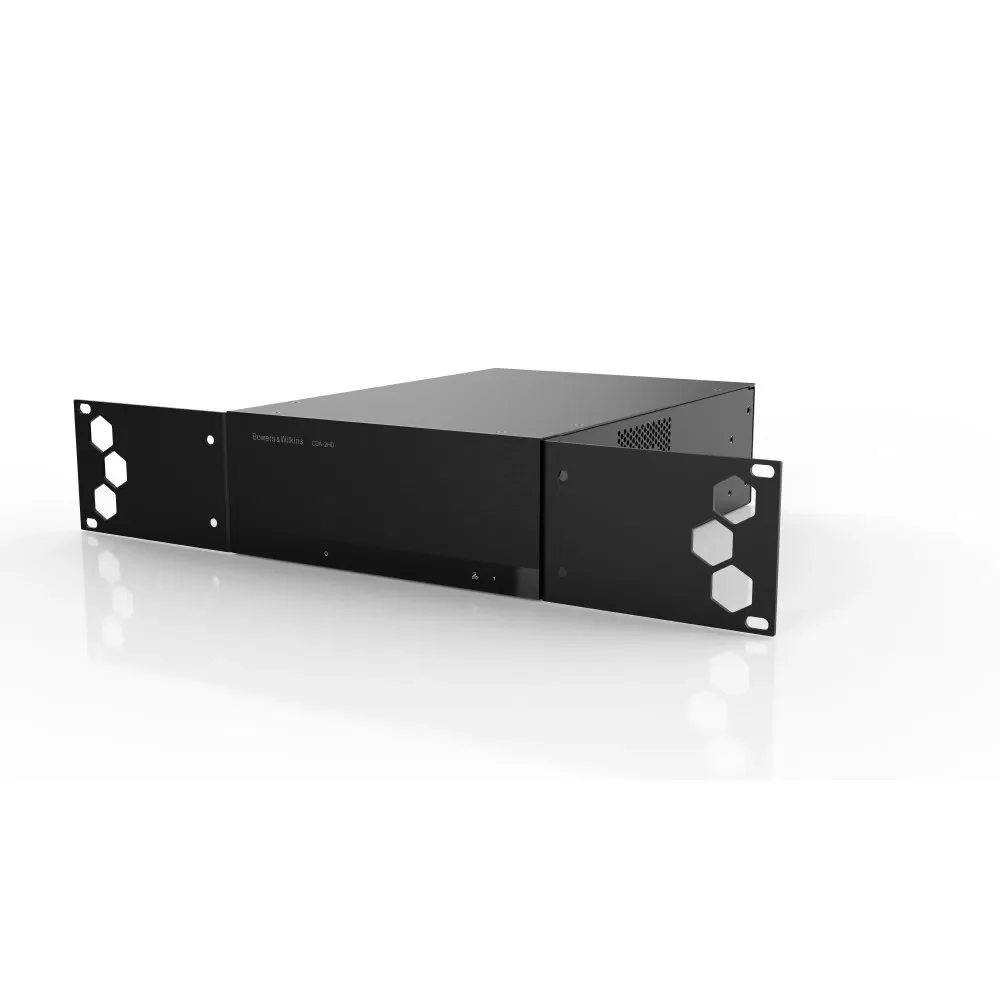

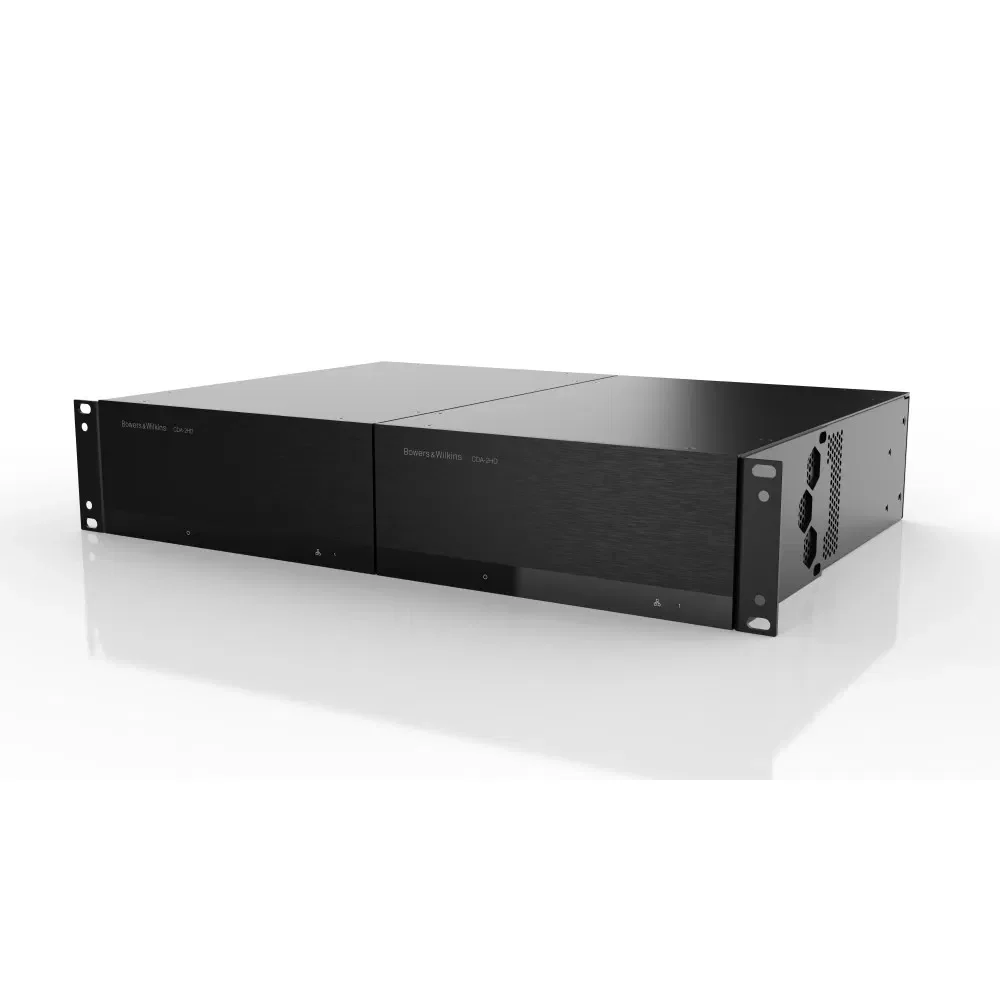

  1. Half-rack width 2U design

  2. Digital Signal Processing (DSP)

  3. Half-rack width 2U design

  4. Audio SpecificationsLoad impedance range:>3Ω per channel (>6Ω in bridge mode)Output Power per channel, non-clipped:250W into 8Ω
    500 into 4ΩOutput Power bridge mode, non-clipped1000W short term
    >250W continuousDC offset voltage:<50mVFrequency Response (-3dB):<10Hz to >30kHz, any load impedanceFrequency response accuracy, 20Hz-20kHz:+/-1dBDynamic range:>85dB A-WeightedTHD+N (1kHz, 500W, 4Ω):less than 1%Voltage Gain:21dB to 45dB, adjustableInput impedance:10kΩMaximum input voltage:4 VrmsSignal sense threshold:2.5mV (independent of Gain setting)Wake-up time:<0.2s (If other zones active)

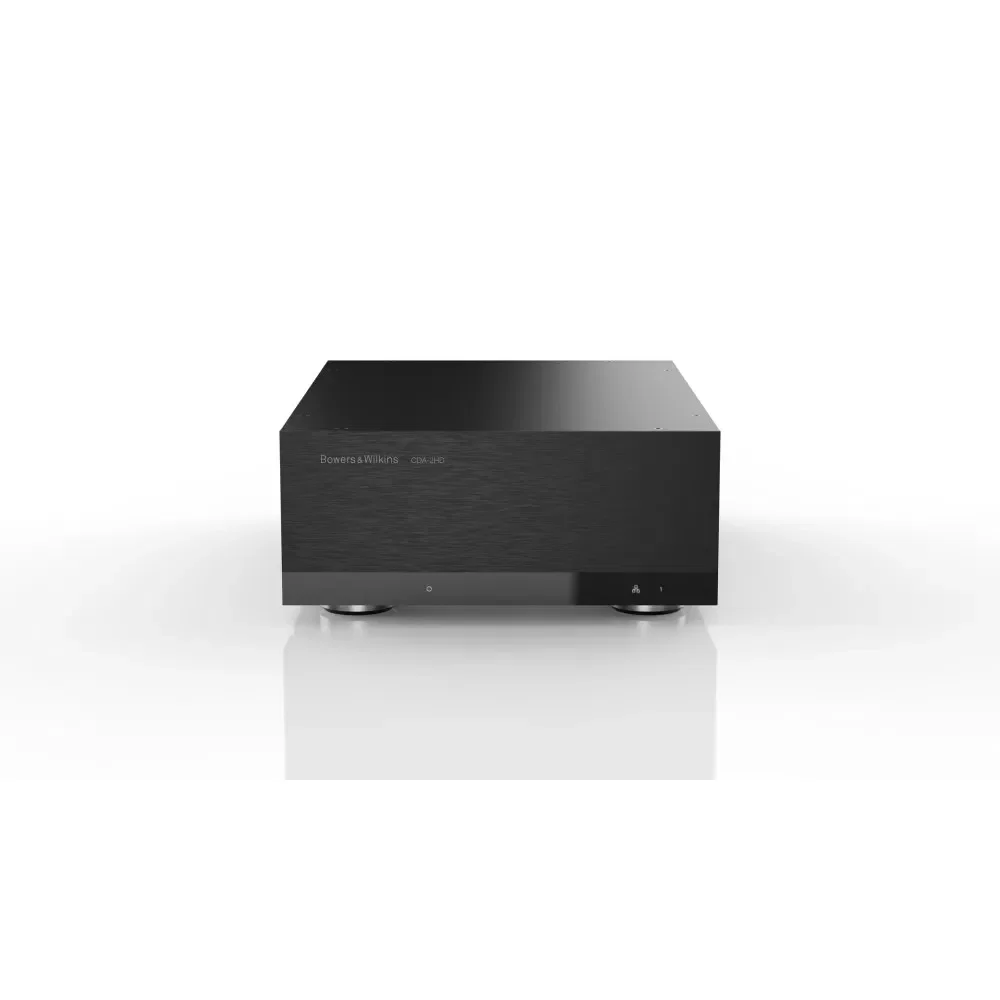

    <2s (From all zones inactive)Turn-off time:15 minutes from last signal detected12V trigger input threshold:Typically 3V (recommended input is 5-15V) (TBC)Controls and IndicatorsFront panel:1 x Power LED (unit active – White, Fault – Red)
    1 x Network status LEDs (Signal present – White, Fault – Red)

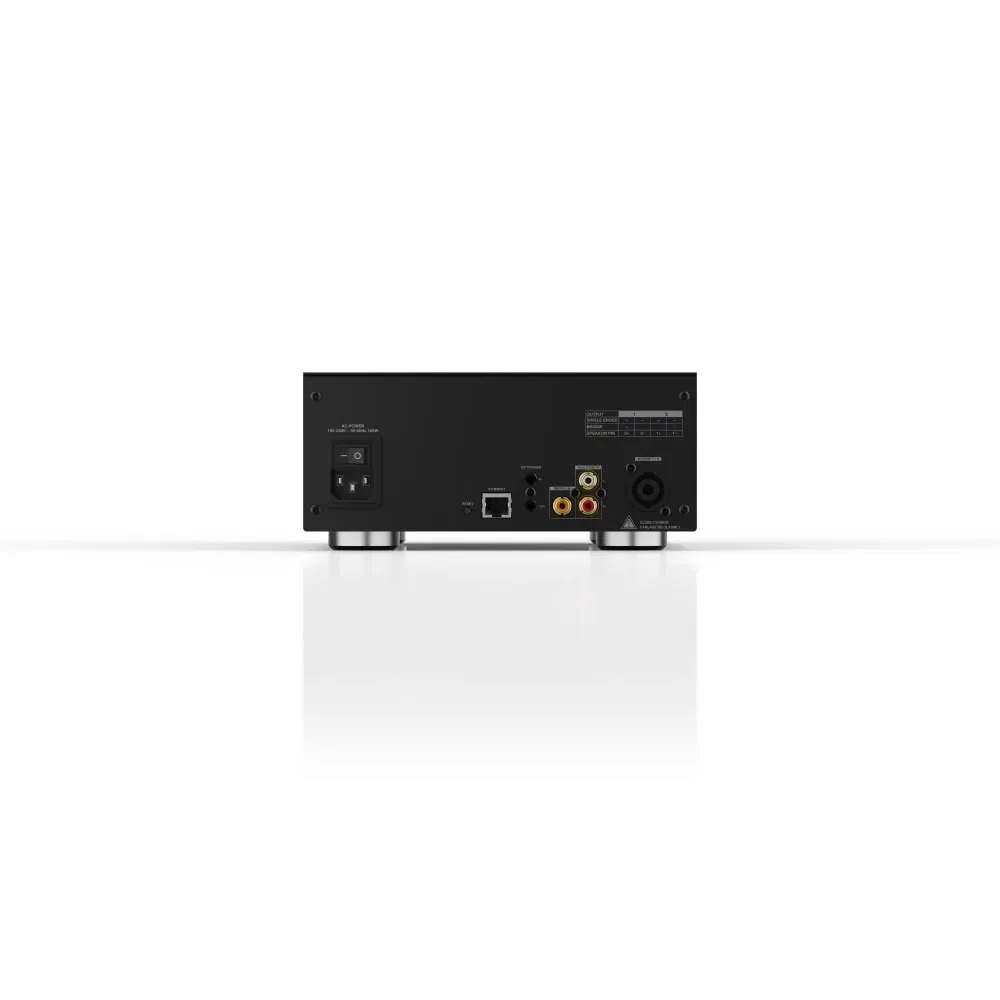

    1 x Zone status LEDs (Signal present – White, Fault – Red)ConnectorsInput:1 x RCA (pair) Phono socket, Analogue line in
    1 x RCA Phono socket, Digital line in
    1 x EthernetOutput:1 x SpeakOn12V trigger control:1 x 3.5mm jack - 12V trigger IN
    1 x 3.5mm jack - 12V trigger OUT (Maximum 100mA pass-through)PowerPower consumption:<0.5W Standby, WoL disabled
    <2W Standby, WoL enabled
    300W maximum average (TBC)
    1,000W peak (TBC)AC supply:100-240V 50/60HzAC inlet:IEC C14, switchedThermalThermal dissipation:TBC BTU/hr (standby)
    TBC BTU/hr (Idle)
    TBC BTU/hr (max)DimensionsHeight:85mm (3.4in) 1U (100 mm (3.9in) plus feet)Width:218mm (8.6in)Depth:315mm (12.4in)Net weight:3.7kg (8.2lb)Warranty InfoManufacturer's Warranty*:2 Year Return To BaseFaulty From New*:
    (Within 14 Days Of Purchase):Return to AWE for assessment.
    Please complete this online Returns FormAfter 14 Days Of Purchase*:
    (Within The Manufacturer's Warranty)Return to AWE for assessment.
    Please complete this online FormPost-Warranty Service and Repair:Please contact an authorised service centre: Sontec or Sound System Technology*Terms & Conditions:For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions
