Nautilus™ tube loaded tweeter
Aramid Fibre bass / midrange cone FST™
Magnetically attached grille
Flowport™

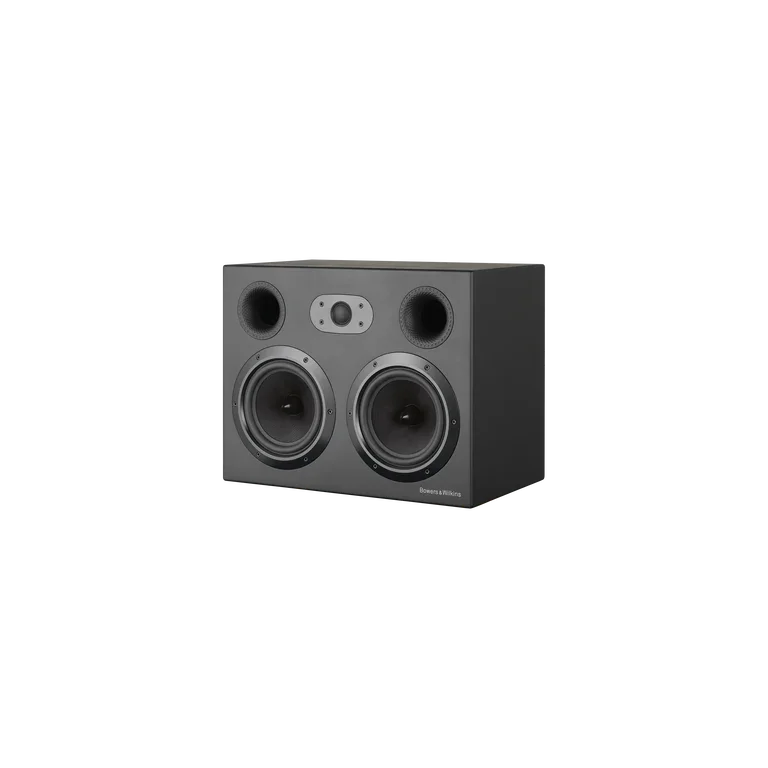

Description:2-way vented-box systemTechnical Features:Nautilus™ tube loaded tweeter
Aramid Fibre bass/midrange cone
Flowport™
Magnetically attached grilleDrive Units:1x ø25mm (1 in) cloth dome high-frequency
2x ø165mm (6.5 in) woven Aramid Fibre cone bass/midrangeFrequency Range:-6dB at 43Hz and 28kHzFrequency Response:49Hz – 22kHz ±3dB on reference axisDispersion:Within 2dB of reference response
Horizontal: over 60º arc
Vertical: over 10º arcSensitivity:94dBHarmonic Distortion:2nd and 3rd harmonics (90dB, 1m)
< 1% 90Hz – 20kHzNominal Impedance:8Ω (minimum 4.0Ω)Crossover Frequency:4kHzRecommended Amplifier Power50W – 150W into 8Ω on unclipped programmeMaximum Recommended Cable Impedance:0.1ΩDimensions:Height: 343mm
Width: 444mm
Depth: 265mm
Depth with grille: 288mmNet Weight:15.75kgManufacturer's Warranty*:5 yearsFaulty From New*: (Within 14 Days Of Purchase):Return to AWE for assessment.
Please complete this online Returns FormAfter 14 Days Of Purchase*:
(Within The Manufacturer's Warranty):Return to AWE for assessment.
Please complete this online FormPost-Warranty Service and Repair:Please contact an authorised service centre: Sontec or Sound System Technology*Terms & Conditions:For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions
