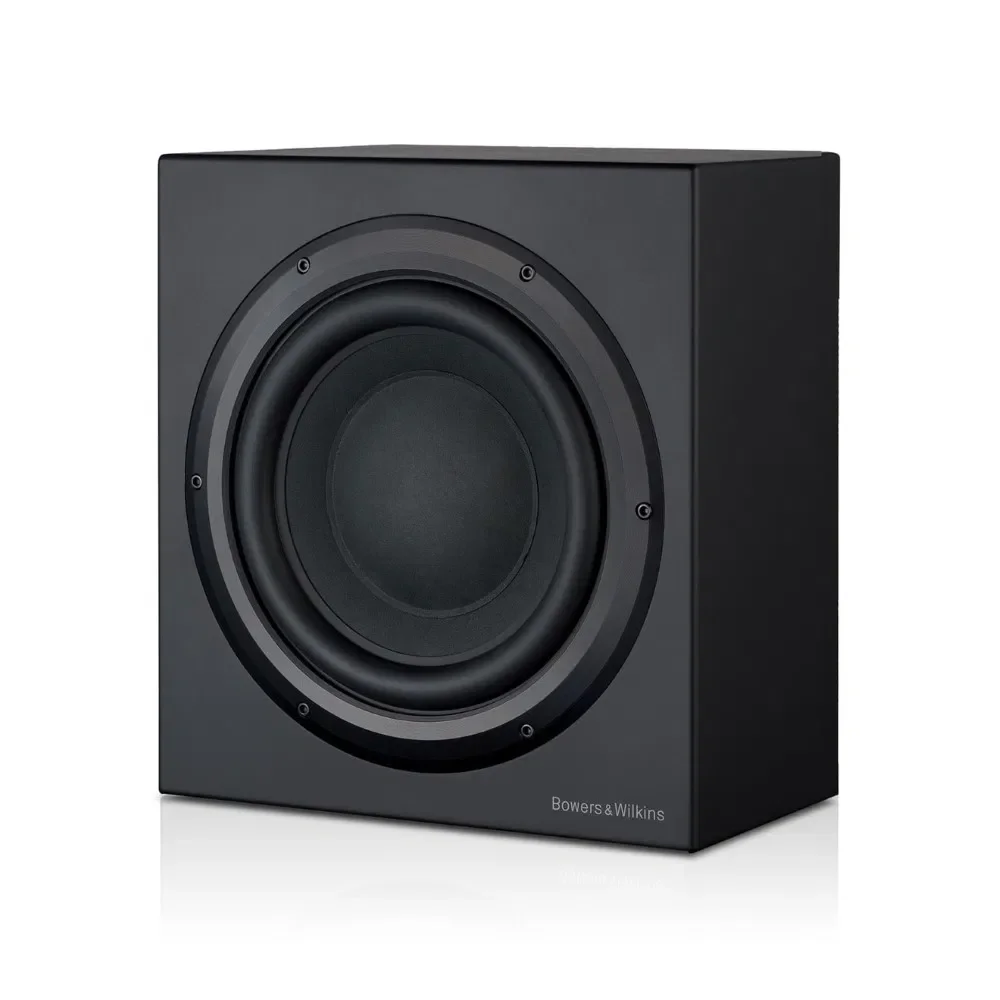

Closed-box subwoofer system
External rack-mount amplifier
Aramid Fibre cone
Uniquely rigid mushroom diaphragm construction
Description: Closed-box subwoofer system with external rack-mount amplifier Drive Units:1x Ø380mm (15 in) paper/Aramid Fibre cone longthrow Frequency Range:-6dB at 16Hz and 25/140Hz adjustable (EQ at A)Frequency Response:±3dB 20Hz – 40/140Hz adjustable (EQ at A)Bass Extension:-6dB at 16Hz (position A)
-6dB at 20Hz (position B)
-6dB at 25Hz (position C)Power Handling:1000W (8Ω)Recommended amp power:1000W into 4Ω on unclipped programme (CDA-2HD subwoofer amplifier)Dimensions:Height: 550mm
Width: 550mm
Depth: 260mm
Depth with grille: 290mmNet Weight:30kgManufacturer's Warranty*:5 yearsFaulty From New*: (Within 14 Days Of Purchase):Return to AWE for assessment.
Please complete this online Returns FormAfter 14 Days Of Purchase*:
(Within The Manufacturer's Warranty):Return to AWE for assessment.
Please complete this online FormPost-Warranty Service and Repair:Please contact an authorised service centre: Sontec or Sound System Technology*Terms & Conditions:For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions
