Multichannel Surround

Sound Enhancements

• Discrete Power AmplifierYes

• Pure DirectYes

• AudysseyMultEQ XT32

• Audyssey Dynamic EQ, Dynamic VolumeYes, Yes

• Audyssey LFCYes

• Dirac Live UpgradabilityYes

• Compressed Audio RestorerYes

Network

• Media ServerYes

• HEOS Wireless Multi-Room TechnologyYes

• Alexa / Google Voice Assistant / Apple HomePodYes, Yes, Yes

• Lossy Formats: MP3, WMA, AACYes, Yes, Yes

• Lossless Formats: FLAC, ALAC, WAVYes, Yes, Yes

• Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit)Yes, Yes, Yes

• DSD Audio StreamingYes (2.8/5.6MHz)

• AirPlay 2Yes

• TuneInYes

• Spotify ConnectYes

• Roon TestedYes

• HEOS App ControlYes

• Compatible with Remote APP for Smart PhonesDenon 2016 AVR Remote

• Ethernet PortsYes

• Wi-FiYes

• BluetoothYes

HDMI

• HDMI Inputs: Back, Front6, No

• HDCP2.3 supportYes

• HDMI Outputs: Main, Zone2, 1

• HDMI 2.1: 8K/60Hz AB, 4K/120Hz ABYes, Yes

• HDR, HLG, Dolby Vision, HDR10+, Dynamic HDRYes , Yes, Yes, Yes, Yes

• ALLM (Auto Low Latency Mode) Pass-through for gamingYes

• Variable Refresh Rate, Quick Flame Transport, Quick Media SwitchingYes, Yes, No

• 3D Signal Pass-throughYes

• 8K Signal Pass-Through, Scaling, GUI OverlayYes, Yes, Yes

• DSD Audio CapabilityYes

• Audio Return Channel (ARC), Enhanced ARCYes, Yes

• Auto LipSyncYes

Multi-room / CI

• Multi-Room Zones2

• Zone Audio Source: HDMI; Optical, Coax, Network, USB; AnalogYes (2ch), Yes (2ch), Yes, Yes

• Zone Audio Output: Speaker, Pre-OutYes, Yes

• Zone HDMI Output from HDMI SourceYes

• IP Control, RS232 Control, Web Control, App ControlYes, Yes /Yes, Yes

• Remote In / OutYes, Yes

• DC Trigger Output1

• HDMI DiagnosticsYes

Others

• Auto Speaker Setup by MicrophoneAudyssey MultEQ XT32
  Dirac Live (upgrade)

• Front Display1-Line FLD

• GUI Languages3

• Setup AssistentYes

• Quick Select Plus, Quick SelectYes, No

• Variable CrossoverYes

• Optimized Bass RedirectionYes

• Bass SyncYes

• ECO ModeYes

• Auto Power OffYes

• Sleep TimerYes

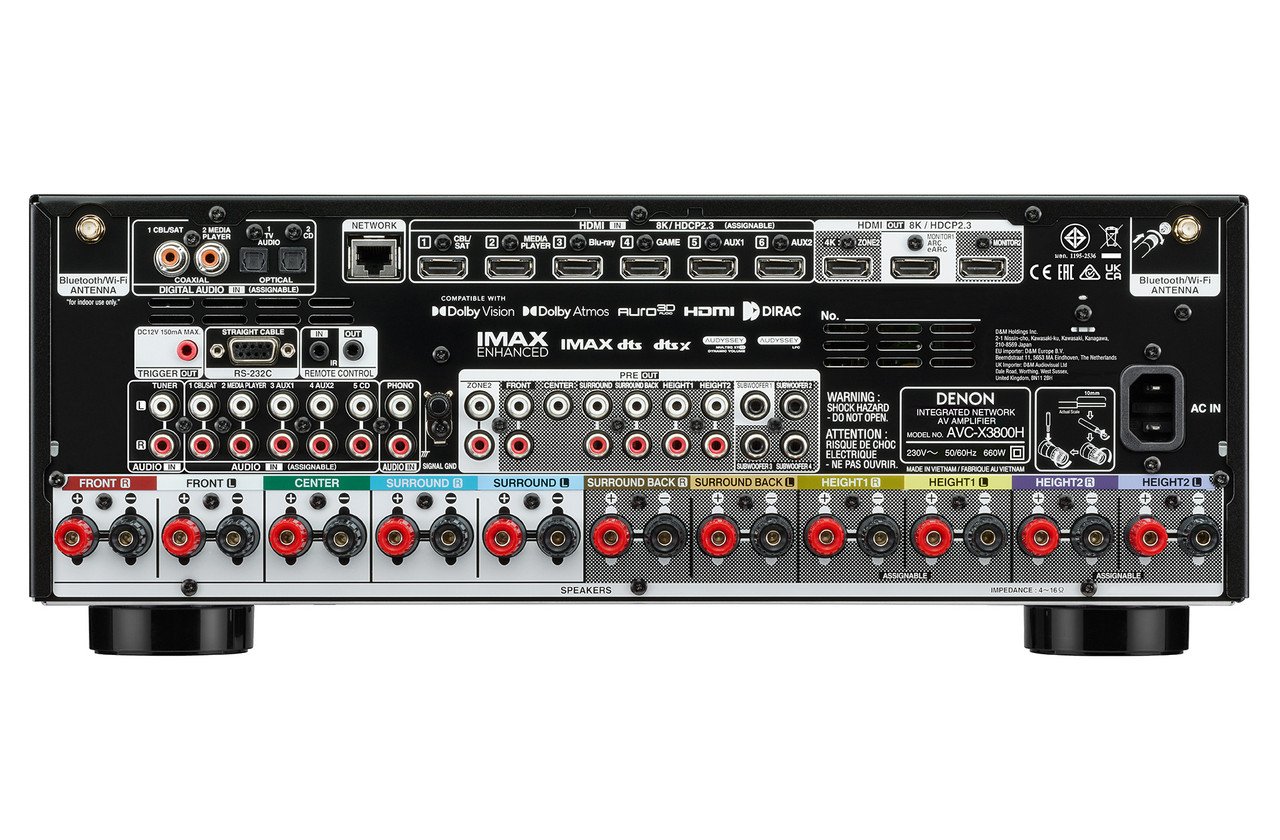

Inputs/Outputs

• HDMI In, Out6, 3

• Multi-Room Video Out: Video, HDMINo, Yes

• Analogue In, Out6 / No

• Phono (MM) InYes

• Digital In: Optical, Coaxial2 / 2

• Multi-Room Out: Analog, Digital1 / No

• Multichannel Pre-OutYes (11.4)

• Subwoofer Out4 (independent)

• Speaker Terminal: Gold-Plated Screw, Regular ScrewNo, Yes

• Number of Speaker Terminals11

• Speaker A / BAssignable

• Bi-amp DriveAssignable

• Multi-Room Speaker TerminalAssignable

• Front Inputs: Audio, Composite, Digital (Opt), HDMI, USBNo, No, No, No, Yes

• USB Audio, Made for iPod, Made for iPhoneYes, No, No

• AM/FM TunerNo

Specifications

• Number of Power Amps9

• Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)105W

• Power Output (6 ohm, 1kHz, 0.7% 2ch Drive)135W

• Power Output (6 ohm, 1 kHz, 10% 1ch Drive)180W

General

• System Remote ControlRC-1253

• Pre-Programmed, Learnable, LCD DisplayNo, No, No

• Power Consumption in W660W

• Power Consumption No-Sound (ECO On / Off) in W60W/100W

• Standby Consumption in W0.1

• CEC Standby Consumption in W0.5

• Network Standby Consumption in WLess than 2.0

• Maximum Dimensions
  Antenna:Horizontal:(W x D x H) in mm
  ( Antenna:Vertical :(W x D x H) in mm)
  【 w/o Antenna :(W x D x H) in mm】434 x 389 x 167
  ( 434 x 389 x 236 )
  【 434 x 379x 167 】

• Weight in kg12.5

• Carton Weight (inc. product) in kg15.1
