Toroidal Transformer
The technology at the core of the Marantz PM6007 is a toroidal transformer, a component which delivers power more efficiently than standard EI core transformers. The toroidal shape offers greater power in a smaller form so your PM6007 amplifier can do more without taking up extra space in your home. With low levels of electromagnetic radiation and mechanical vibration, the sound is never restricted.
Low Impedance; High Dynamic Range
Power from the PM6007’s toroidal transformer is supported by high-current storage capacitors and Schottky Barrier Diodes. These quality components, specially selected for their electrical benefits by experts at Marantz, contribute to a broad dynamic range and low-impedance drive.
Current Feedback Amplification
Wide bandwidth and high slew rate deliver sound without delay in the Marantz PM6007. This is thanks to the current feedback amplifier type adopted for this model. Moreover, advanced thermal compensation prevents memory distortion while power is stored in a substantial energy reserve. This ensures sound clarity remains high.
Brilliant D/A Conversion
The Marantz PM6007 is equipped with a reference class D/A converter that creates stunning audio quality. It will provide 192-kHz/24-bit resolution so you can get immersed in your favourite music. With a built-in MM phono pre-amp with FET input, you can seamlessly connect to your turntable and optimise your favourite vinyl records.
Thundering Bass
Offering a subwoofer output, you can take the sound of the bass to another level by connecting the PM6007 to a high-quality subwoofer. The Advanced Thermal Compensation provides minimal memory distortion so you can clean audio.
Features
Built-in phono pre-amplifier for true-to-performance sound through your turntable
High-quality digital-to-analogue converter (AK4490) processes digital signals fast
Two 45W channels with an efficient power transformer and power reserve
Range of inputs including five analogue, one coaxial, and two digital optical inputs
Digital filter modes for optical and coaxial inputs
No memory distortion even with powerful bass
A fixed low pass cut-off frequency of 150Hz with an external subwoofer allows you to enjoy deeper bass
Fully shielded DAC unit with copper screws and rigid feet providing true-to-performance sound
What’s in the box?

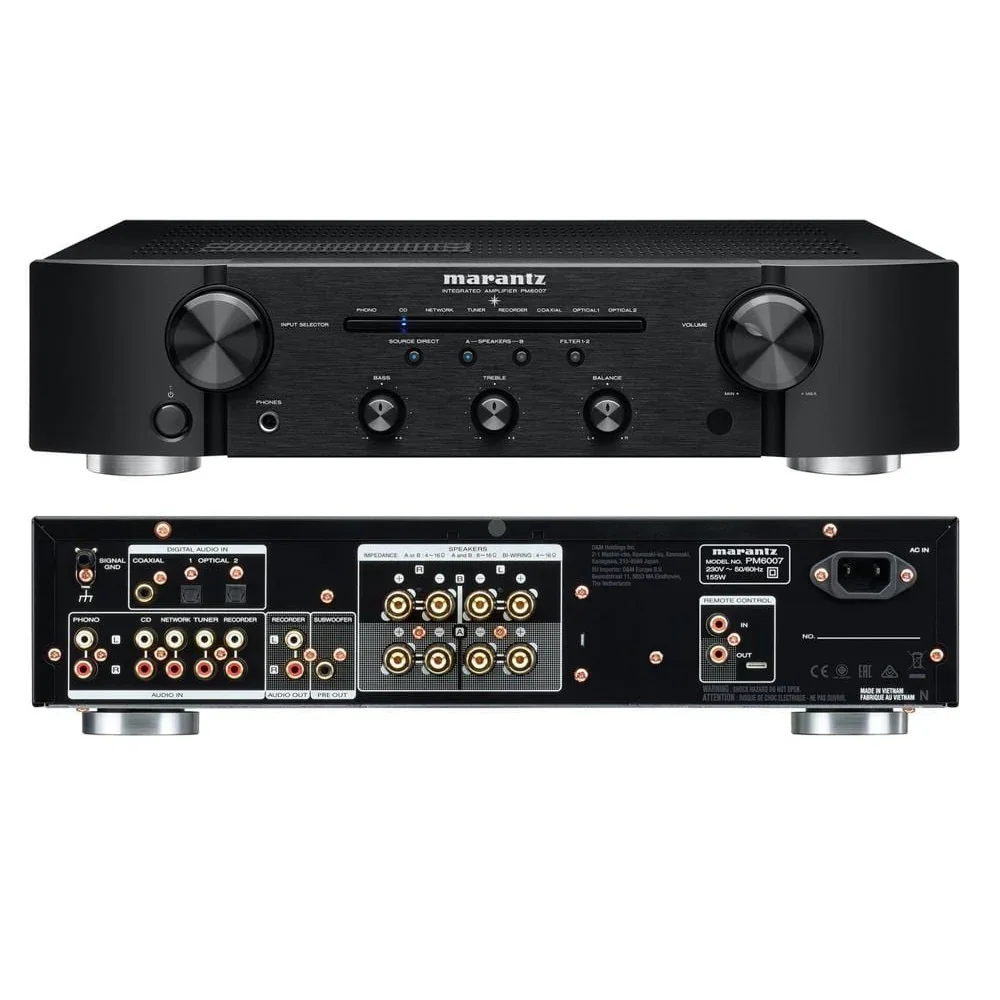

Marantz PM6007 Integrated Amplifier
Remote Control (RC004MCD)
Two AAA batteries
Power Cable
Quick Start Guide
Specifications
Dimensions
Maximum dimensions (W x D x H)440 x 370 x 105 mmPackaged Dimensions (W x D x H)517 x 189 x 468 mmWeight7.6 kgPackaged weight9.7 kg
General
Channels2Current feedback technologyYesPhono EQStandardSample rate digital ln192 kHz / 24-bitDAC chipAK4490HDAM versionSA3, SA2Power transformerToroidalHigh grade audio componentsYesCustomised componentsYesAluminium extrusion heat sinkYesBalance / Bass / Treble / LoudnessYes / Yes / Yes / No
Power
Power output (8/4 Ohm RMS)45 W / 60 WFrequency response10 Hz – 70 kHzTotal harmonic distortion0.08Damping factor100Input sensitivity: MM2.2 mV / 47 kOhmInput sensitivity: MCNoSignal-to-noise ratio: MM/MC83dB / NoInput sensitivity: high level200 mV / 20 kOhmInput sensitivity: balanced high levelNoSignal-to-noise ratio: high level102dB (2V input)Input sensitivity: power amp direct INNoSignal-to-noise ratio: power amp direct INNoPower consumption155 WStandby consumption0.3 WAuto power offYes

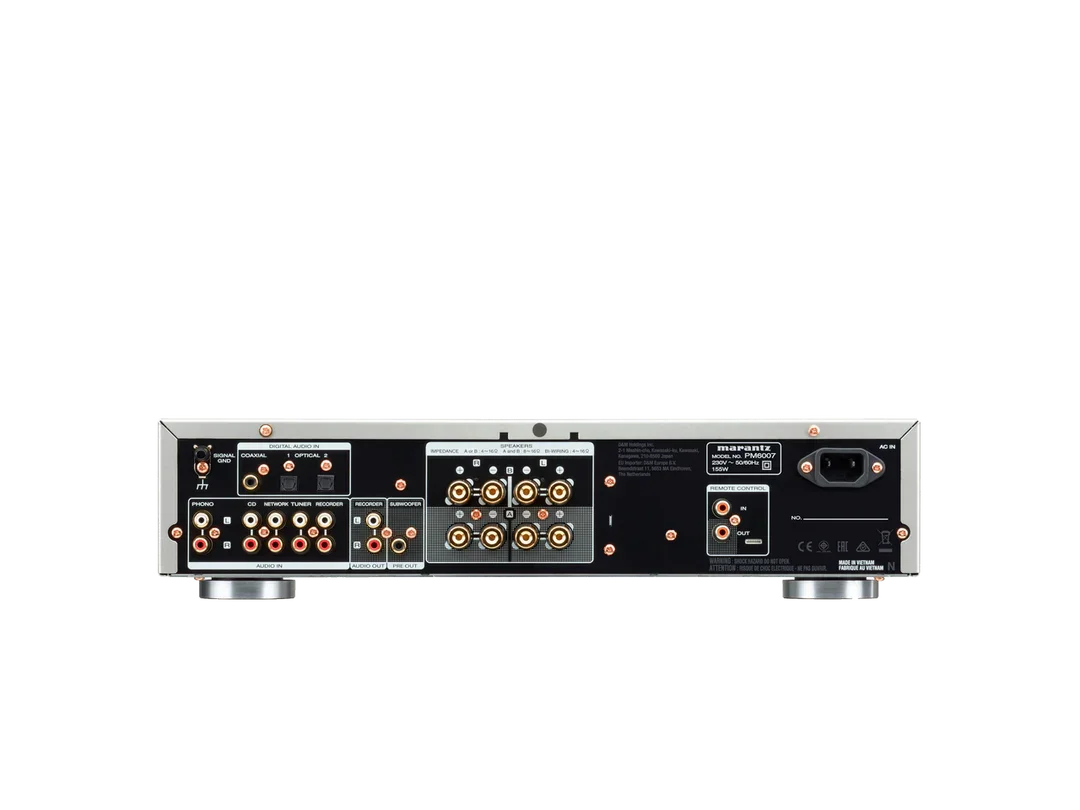

Inputs/outputs

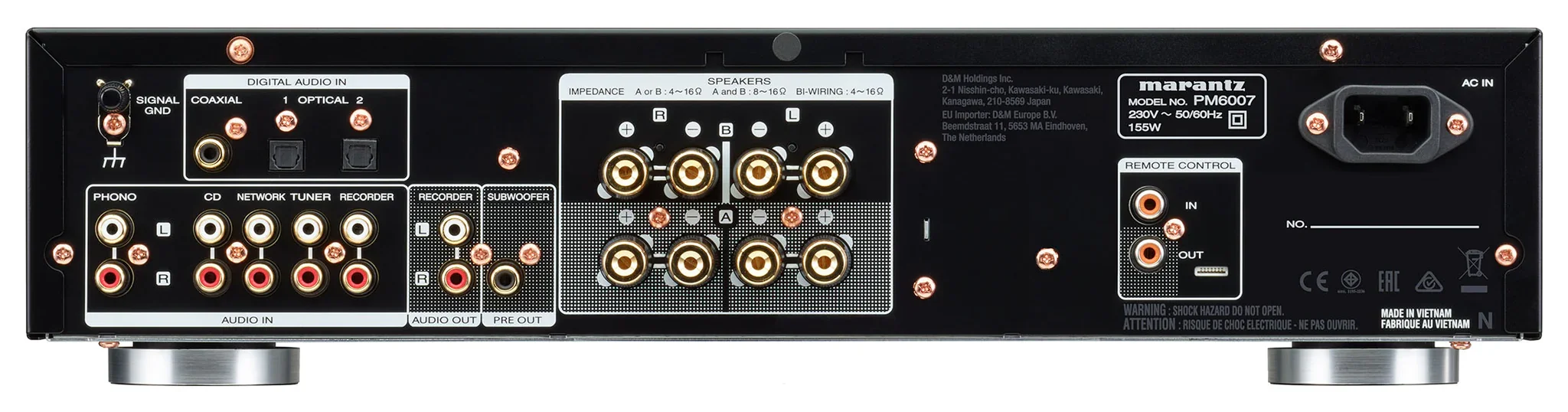

Audio inputs5Digital in2 optical, 1 coaxialPhono inputMMAudio outputs1Pre-outSubwooferGold plated cinchYesSpeaker A / BYesSpeaker terminalsMetal (gold) screwNumber of terminals4D-busYesHeadphone outYes
Other
Marantz Musical Digital FilteringYesLinear drive power supplyYesLinear volume controlYesShottky diodesYesSystem block shieldingNoneSource directYesProduct CodePM6007/T1BEAN4951035074411
