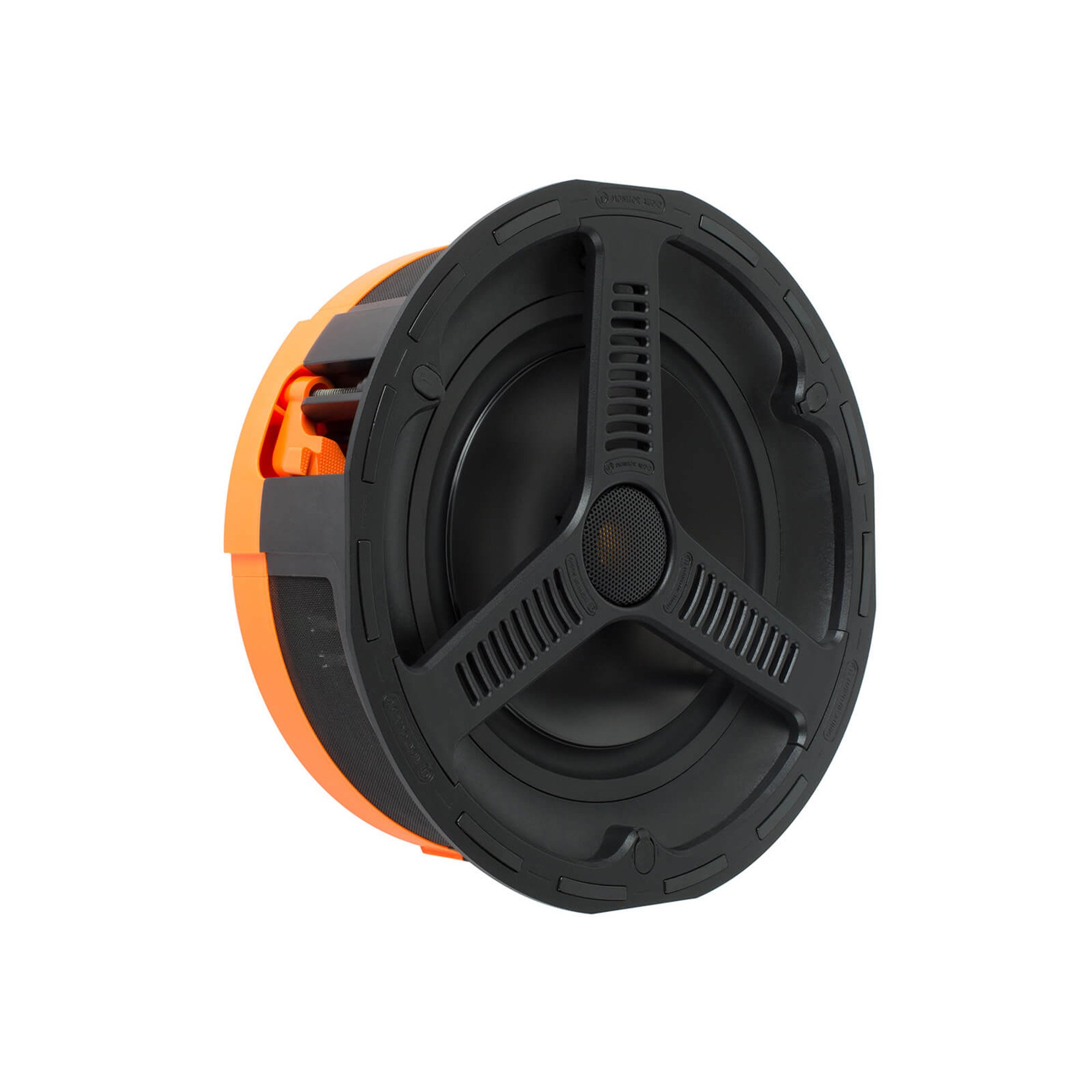

Monitor Audio AWC280 In-Ceiling Speaker
Developed using all C-CAM driver systems derived from our critically acclaimed hi-fi speakers, the AWC280 comprises a stylish two-way 8” C-CAM bass driver.
An optional square grille can be used with this model.
Features at a glance:
Quick and easy installation | 8" C-CAM cone bass driver | 1" C-CAM Gold Dome tweeter | Gold plated push style terminal | EPDM barriers Stainless fixing screws | IP55 certified | Non-ferrous Samarium Cobalt magnets | Stainless Steel trimless grille | Tri-Grip for easy and secure fitment
All weather stylish two-way 8” ceiling mounted speaker.
Quick and easy installation
High Performance C-CAM bass and high frequency drivers
Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
Gold plated push terminals with silicon cover
Stainless fixing screws with Silicone covers
Tweeter level attenuation (internal) – set prior to installation
Applications: pool rooms, bathrooms, marine deck, universal outdoor installation
Monitor Audio AWC280 In-Ceiling Speaker
Developed using all C-CAM driver systems derived from our critically acclaimed hi-fi speakers, the AWC280 comprises a stylish two-way 8” C-CAM bass driver.
An optional square grille can be used with this model.
Features at a glance:
Quick and easy installation | 8" C-CAM cone bass driver | 1" C-CAM Gold Dome tweeter | Gold plated push style terminal | EPDM barriers Stainless fixing screws | IP55 certified | Non-ferrous Samarium Cobalt magnets | Stainless Steel trimless grille | Tri-Grip for easy and secure fitment
All weather stylish two-way 8” ceiling mounted speaker.
Quick and easy installation
High Performance C-CAM bass and high frequency drivers
Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
Gold plated push terminals with silicon cover
Stainless fixing screws with Silicone covers
Tweeter level attenuation (internal) – set prior to installation
Applications: pool rooms, bathrooms, marine deck, universal outdoor installation
Frequency Response
50 Hz — 30 kHz
Sensitivity (1W@1M)
89 dB
Nominal Impedance
8 ohms
Maximum SPL
109 dBA
Power Handling (RMS)
100 W
Recommended Amplifier Requirements
20 — 100 W
Drivers
8″ C-CAM cone bass driver
1″ C-CAM Gold Dome tweeter (fixed angle)
Controls
HF Level Switch (+3 dB / 0 dB / -3 dB) – Adjustable at the point of installation
Adjustment Controls
2 x (1 pair) Gold plated push style terminal
Overall Diameter (Including Grille)
285 mm (111/4“)
Overall Depth (Including Grille)
102.5 mm (41/32“)
Cut-Out Hole Diameter
247 mm (93/4“)
Mounting Depth
97.55 mm (37/8“)
Optional Square Grille – Outer Dimensions
285 x 285 mm (111/4“)
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
Grille
SS430 Stainless Steel
Magnets
Samarium Cobalt
Operating Temperature Range
-34° to 79° C -29° to 174° F
Weight
2.8 kg (6 lb 2 oz)
Pre-Construction Bracket
CB8 Pre-Construction Bracket (Green)
