Sonos In-Wall Speakers by Sonos and Sonance
Sonos Architectural by Sonance

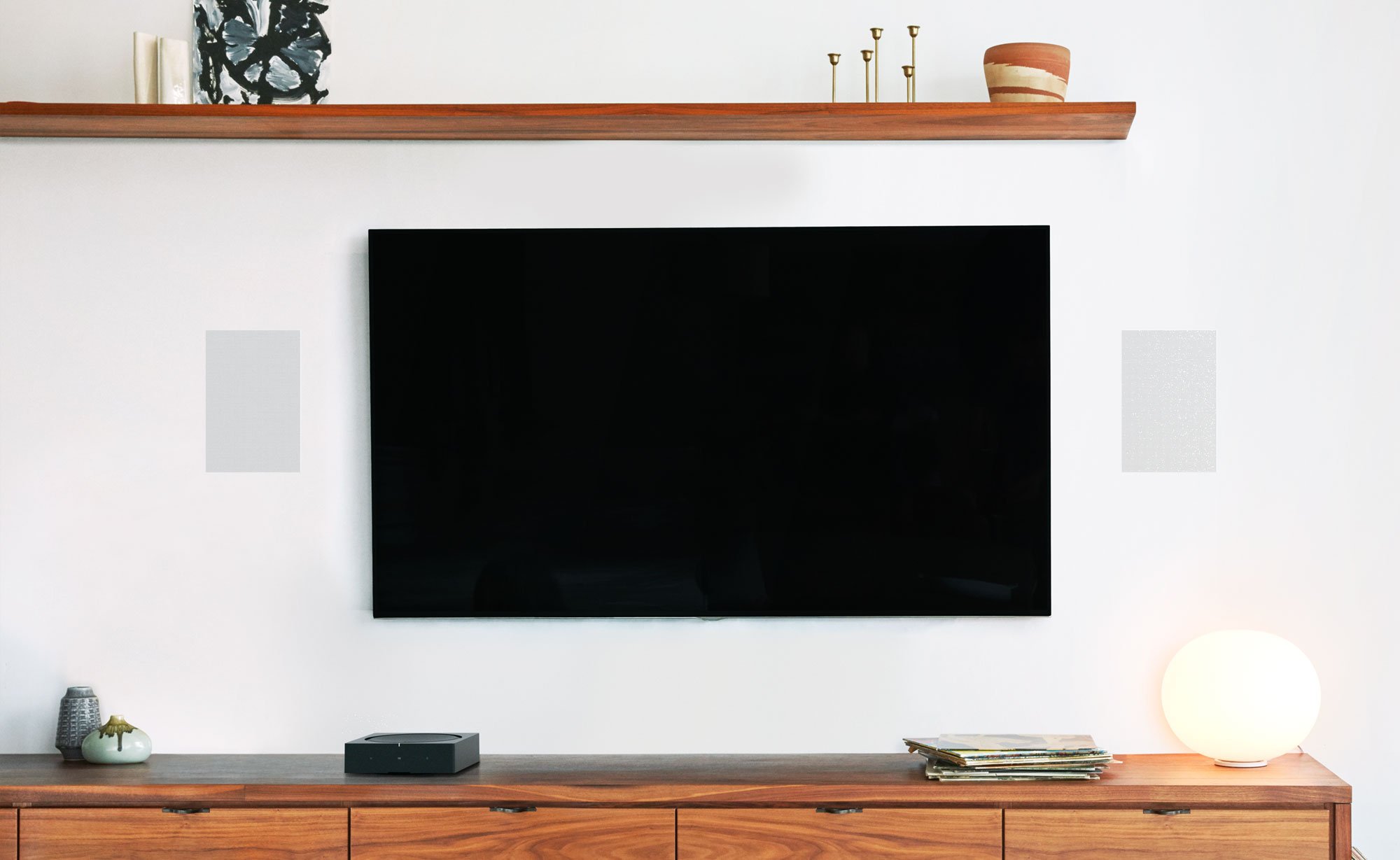

Enjoy bold and focused sound for TV, music and more when you create a built-in sound system with these passive speakers.
Power with Amp for the unmatched Sonos experience, including custom Trueplay™ tuning and endless possibilities for multiroom listening.

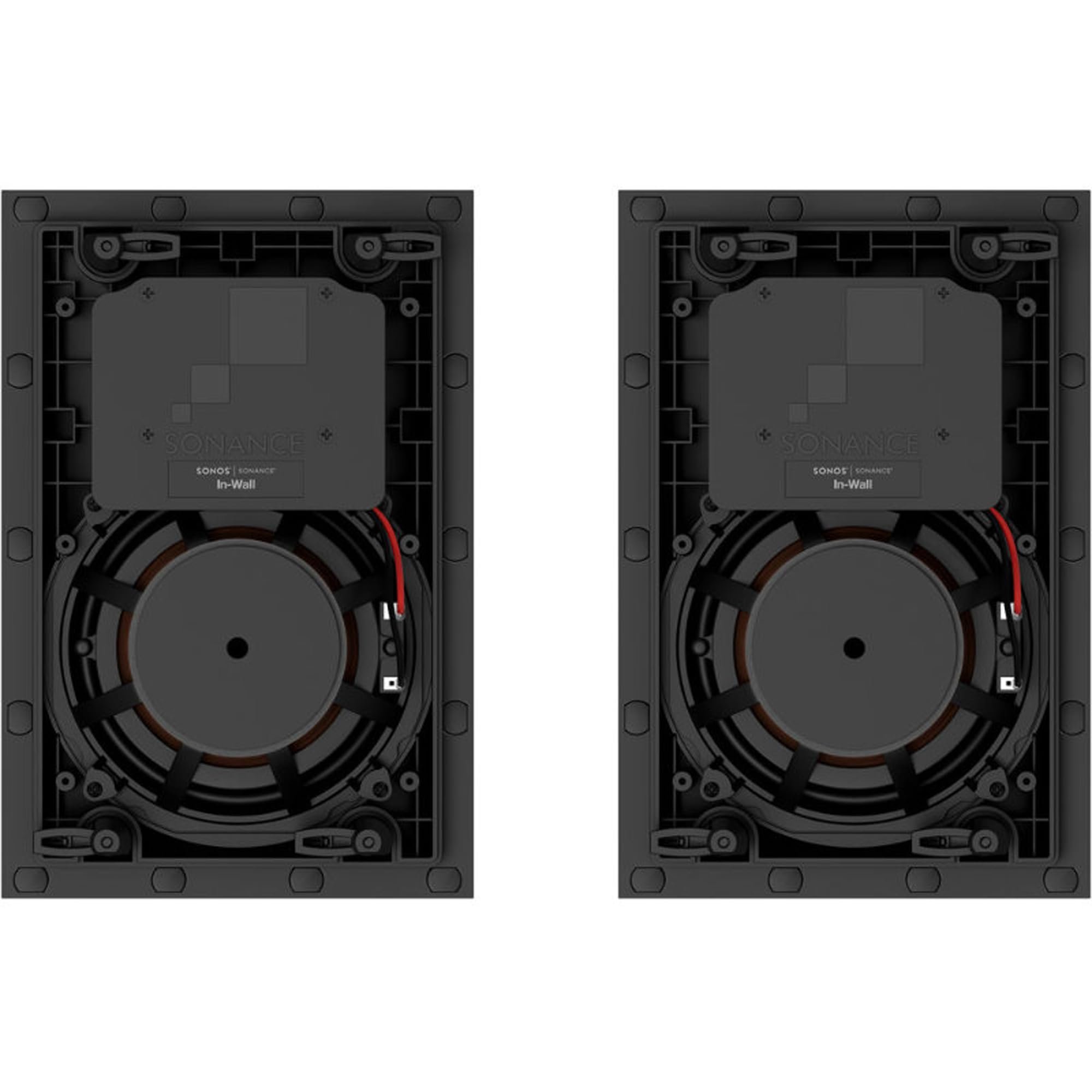

Woofer
One high-excursion polypropylene woofer produces rich mid and low ranges.
Tweeter
One-inch tweeter produces crisp high frequencies.
Frequency Response
44Hz - 20KHZ (±3dB)
Nominal Impedance
8 Ohms
Sensitivity
89dB SPL (2.83V/1m)
Trueplay
This software measures the acoustics of the room then fine-tunes the speaker. Sonos Amp and supported iOS device required.
Optimise Speakers
When selected in the Sonos app, Optimise Sonos Speakers allows Amp to recognise Sonos Architectural speakers then applies custom tuning and DSP to provide more robust sound with a more even frequency response, optimising system performance and ensuring stable operation.
Dimensions
Height: 11.76 in (298.7 mm)
Width: 7.87 in (199.9 mm)
Depth: 3.50 in (89 mm)
Cutout
Height: 10.75 in (273 mm)
Width: 6.93 in (176 mm)
Weight
4.63 lbs (2.1 kg)
Colours
White
Finish
Matte
Power Handling
5 watts minimum
130 watts maximum

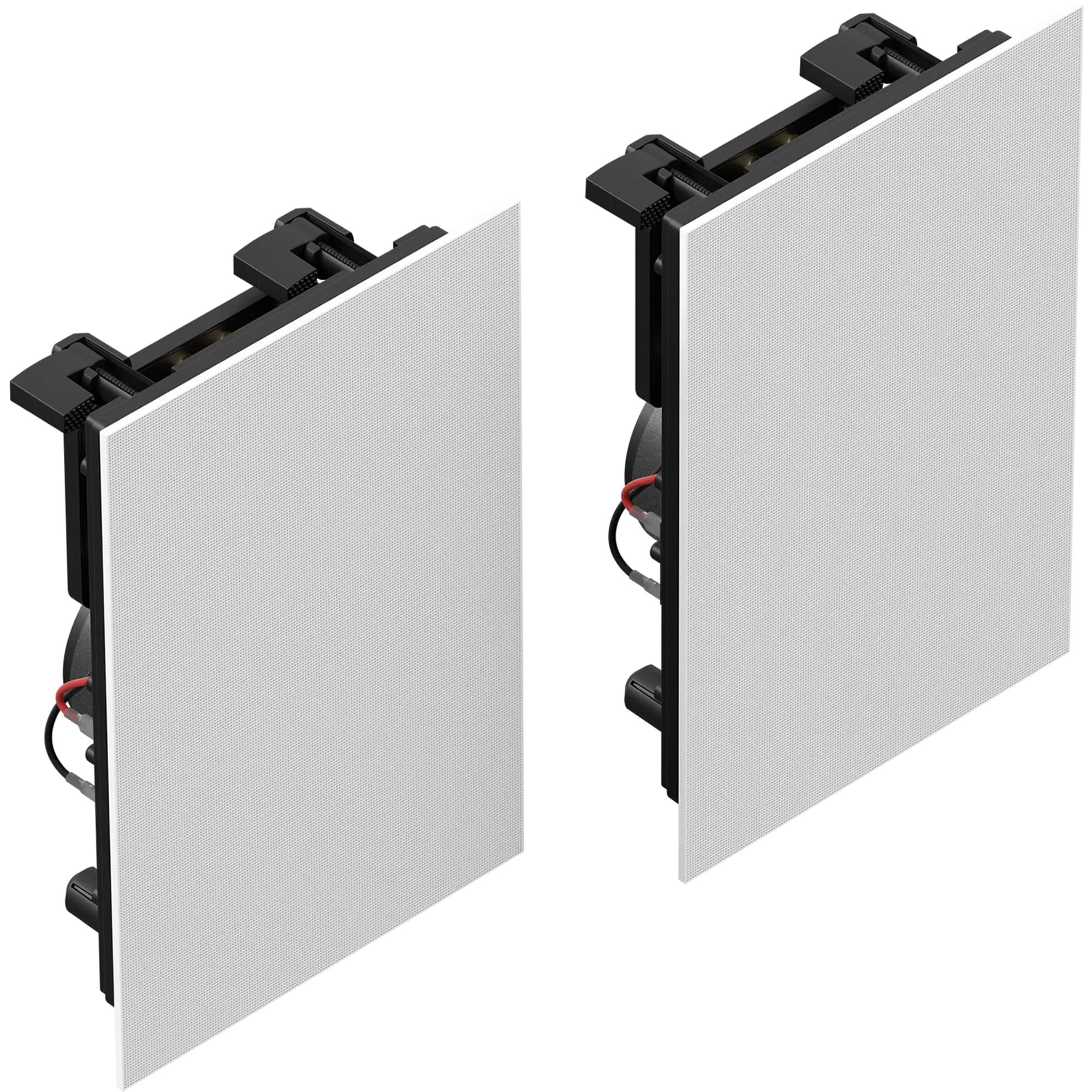

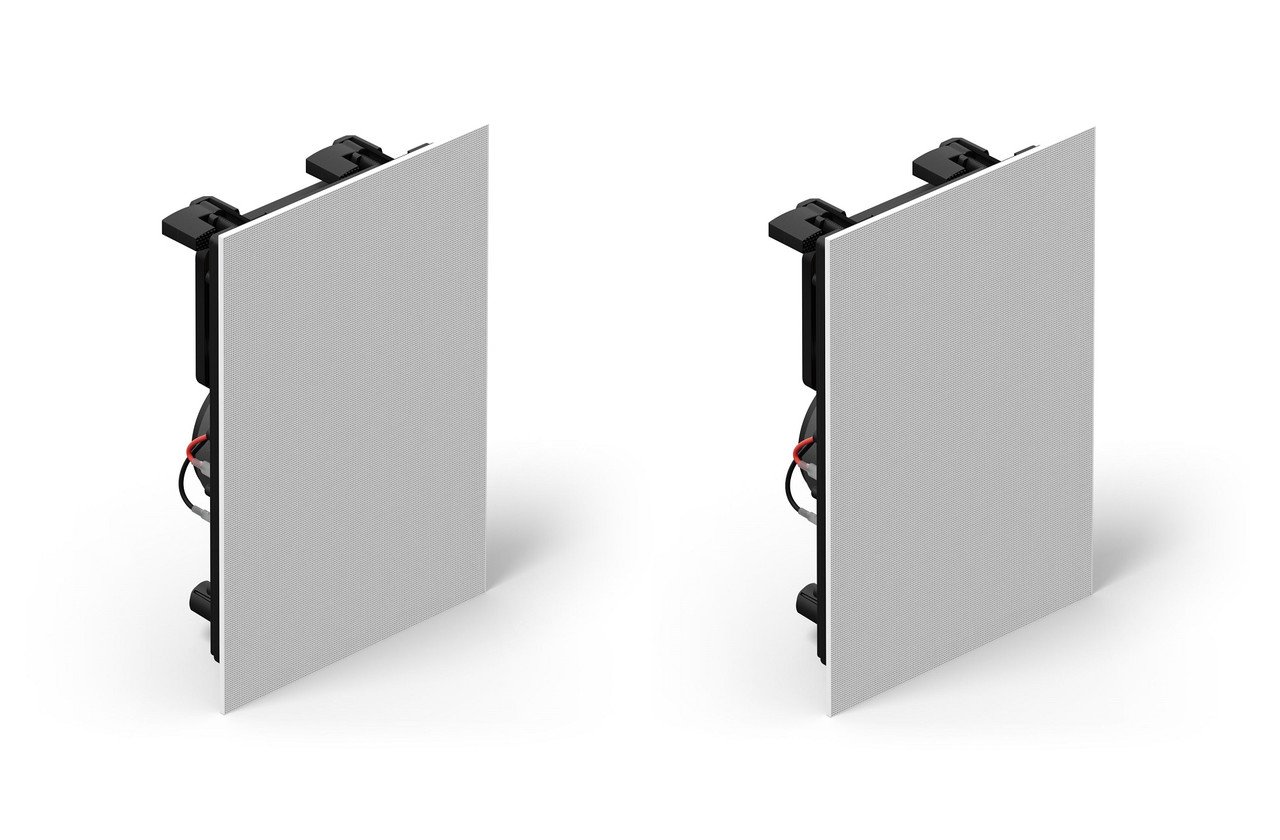

In-Wall Speakers by Sonos and Sonance (Pair)
Speaker Grilles (Pair)
Cutout Template
Documentation
Installation manual and legal/warranty information
Amplifier (Optimised for use with Sonos Amp)
Speaker Wire (16ga or larger)
